Antenna

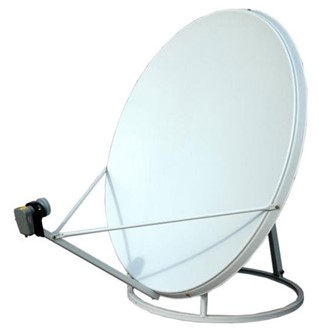

0.45m(SLD045KuPZ)

0.6m(SLD060KuPZ)

0.75m(SLD75KuPZ)

Electrical

Ku-Band

Operating Frequency

10.95 - 12.75 GHz

Midband Gain

33 dBi

35.5 dBi

37.4 dBi

Beam Width ( -3dB)

3.66°

2.75°

2.2°

Cross-Polarization

30 dB on axis

33 dB on axis

Sidelobe Envelope, Co-Pol

52-10 Log(D/λ) -25Log θ dBi  2°≤θ≤20°

VSWR

1.3:1

Feed Interface

F

Antenna Noise Temperature

43°k@10°

44°k@10°

Mechanical

Reflector Material

One-piece Aluminum

Surface Accuracy (RMS)

0.5mm

Antenna Optics

Prime Focus Offset Optics

Elevation Adjustment Range

0° to 90° Continuous

Azimuth Adjustment Range

360° Continuous

Mount Type

Wall mount

Environmental Performance

Wind Loading

Operational   72 kph

Survival   200 kph

Temperature

-40° to 50° C

Rain

Up to 10cm/h

Ice

25.4mm radial on all surfaces

Atmospheric Conditions

Salt, Pollutants and Contaminants as

Encountered in Coastal and Industrial Areas

Solar Radiation

1000 Kcal/h/m2

Seismic

0.3 G's horizontal, 0.1 G's vertical
